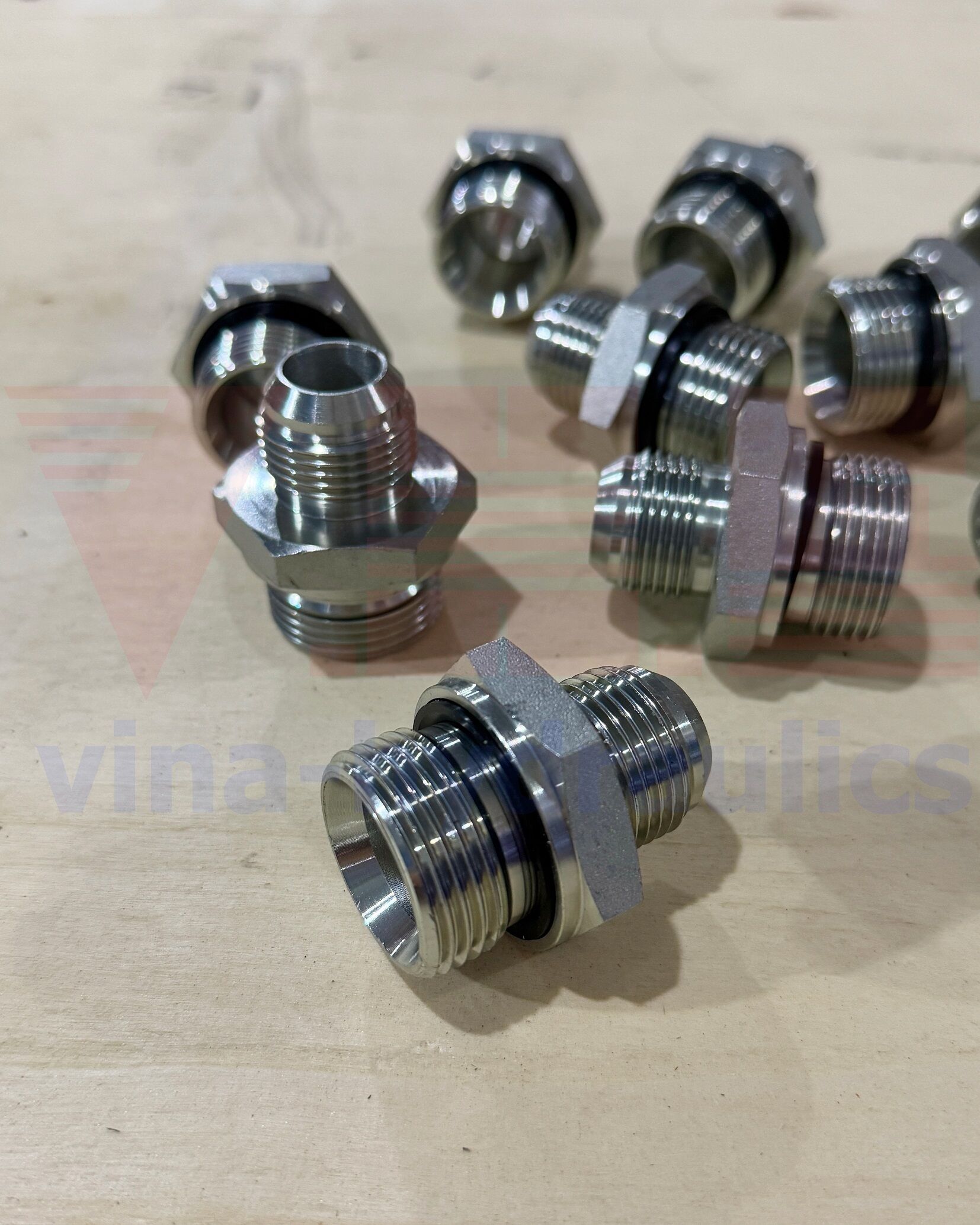

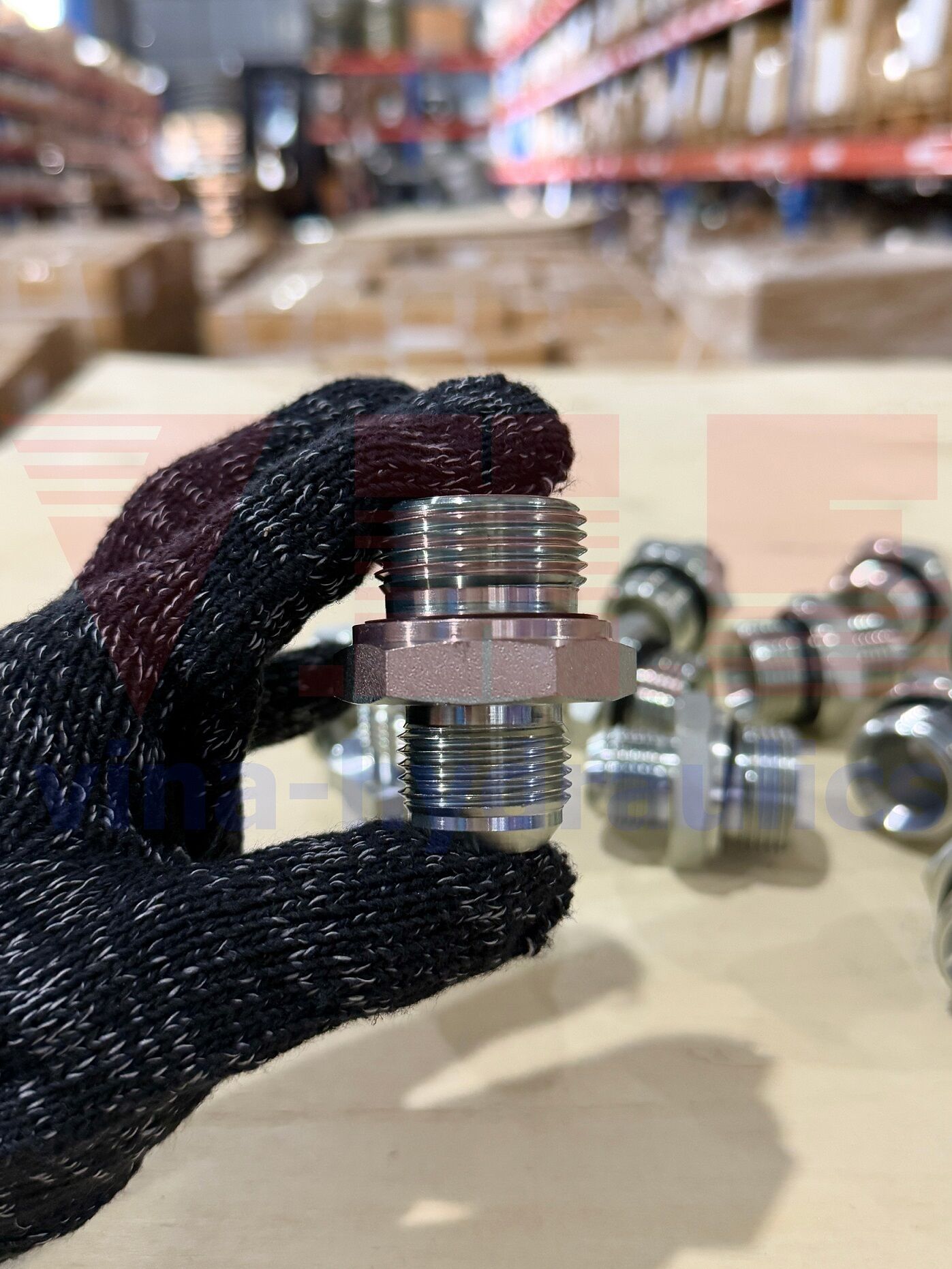

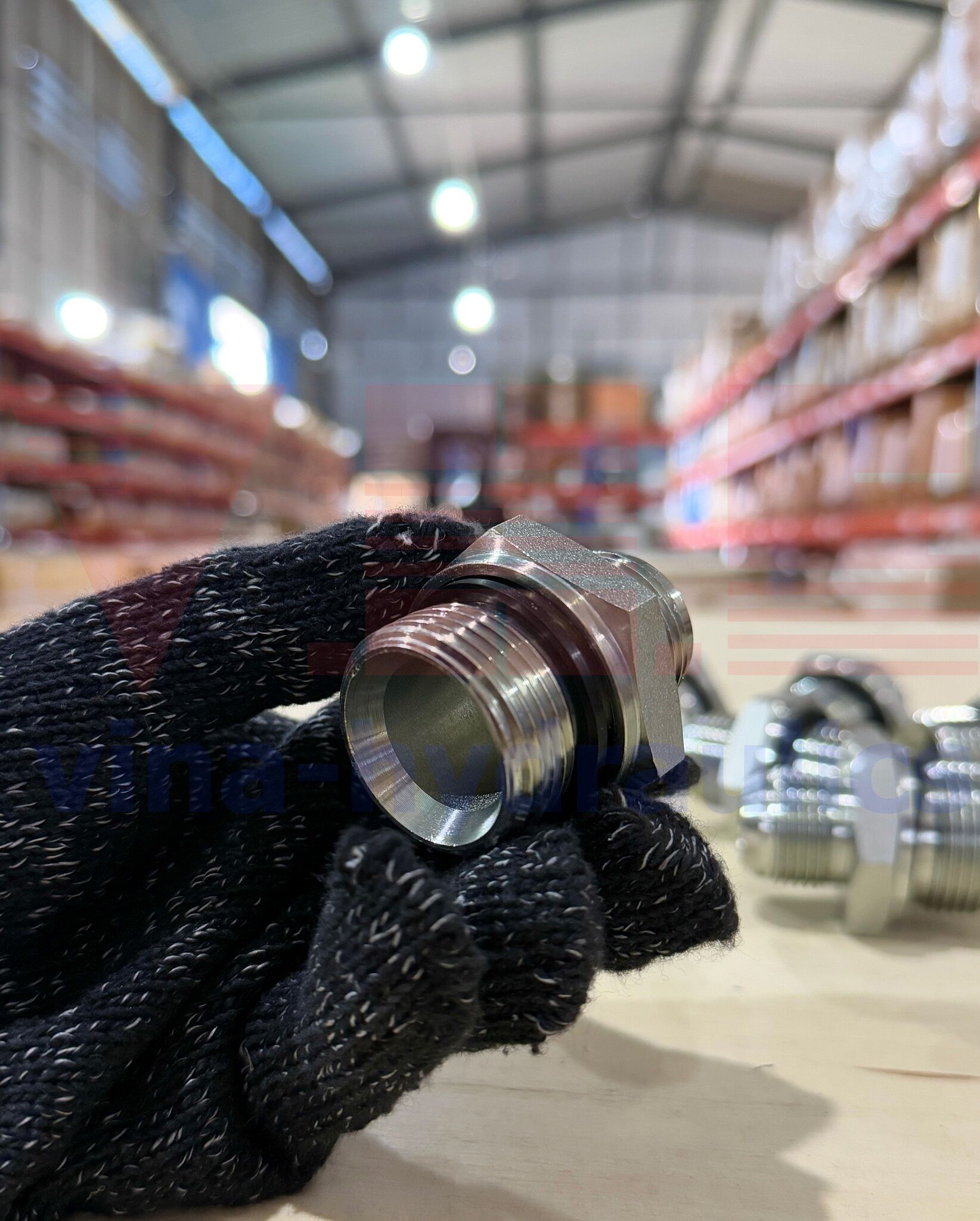

1. About technical specifications
- Fitting Type: Straight Connector (M-M)
- JIC End: 3/4" (37-degree JIC standard)
- BSPP End: 1" (British Standard Pipe Parallel)
- Material: Typically carbon steel, stainless steel, or brass
- Working Pressure: Varies by material and size, potentially reaching thousands of psi.
- Applications: Connects two hydraulic lines with differing sizes and thread standards.
2. Thread Standard Definitions:
- JIC (Joint Industry Council):
- This is a 37-degree flared thread standard widely used in hydraulic applications throughout North America.
- JIC threads offer high sealing integrity, withstand high pressure, and are easy to install.
- BSPP (British Standard Parallel Pipe):
- This is a British standard for parallel threads, commonly used in Europe and globally.
- BSPP threads provide reliable sealing through O-rings or bonded seals.
3. Application of M-M Straight Connectors
- Hydraulic systems in manufacturing, construction, agriculture, and marine industries
- Connect to hydraulic equipment such as valves, pumps, cylinders, etc.
- Repair and maintenance of hydraulic systems.
4. Usage Instructions:
- Identify the correct size and thread standards of the two hydraulic lines to be connected.
- Select the appropriate M-M, JIC 3/4" to 1" BSPP connector.
- Clean the thread surfaces and inspect the O-rings or seals (if applicable).
- Install the connector onto the two hydraulic lines, tightening sufficiently to ensure a leak-proof seal.
- During installation, pay close attention to the cleanliness of the hydraulic fluid and seals to prevent leaks during operation.
Hydraulic fittings are essential components widely used in both residential and industrial piping systems. Their primary function is to connect pipes to machinery, and systems, or to enable quick connection and disconnection of fluid, steam, and gas pipelines. They are available in various types and sizes to suit diverse applications.
Where to Purchase Hydraulic Fittings?
Vina-Hydraulic Equipment Joint Stock Company has recently imported a shipment of over 5000 hydraulic fittings to meet all hydraulic and pneumatic system requirements. We are committed to providing products that meet international standards and ensure safe operation.
In addition to the M-M Straight Connector, JIC 3/4" - 1" BSPP, VHE also offers a variety of other hydraulic fittings, including:
- 90-Degree Elbow M-M, BSPP 1 1/4" - 1 1/4" BSPT 1BT9-20-20
- Straight Connector M-M, JIC 3/8" - 1/2" BSPP 1JB-06-08WD
- Straight Union M-M, BSPP 3/4" - 3/4" BSPT 1BT-12SP
- Straight Coupling M-M, BSPP 1" - 1" BSPT 1BT-16SP
- Hydraulic Straight Connector M-M, JIC 3/4" - 1/2" BSPP 1JB-12-08WD
- Straight Connector M-M, JIC 1 1/4" - 1" BSPP 1JB-20-16WD
- 90-Degree Elbow M-M, BSPP 1/4" - 1/4" BSPT 1BT9-04-04
- Straight Connector M-M, BSPP 1/4" - 3/8" BSPT 1BT-04-06SP
- 90-Degree Swivel Elbow, 1/4" JIC - 1/4" JIC 2J9-04-04
- Straight Connector M-M, BSPP 2" - 2" BSPT 1BT-32SP
Customers seeking to purchase the M-M Hydraulic Connector, JIC 3/4" - 1" BSPP, or other hydraulic fitting types, are encouraged to contact VHE to place an order immediately!
