In high-pressure hydraulic systems, specifying the wrong type of seamless steel tube not only leads to a wasted budget but also poses extremely dangerous risks of leakage and catastrophic blowouts. Are you currently debating between black carbon steel, galvanized steel, or SS316 stainless steel tubes? Which one is the absolute optimal choice for your project? Let Vietnam Hydraulic Equipment (VHE) break it down for you right now.

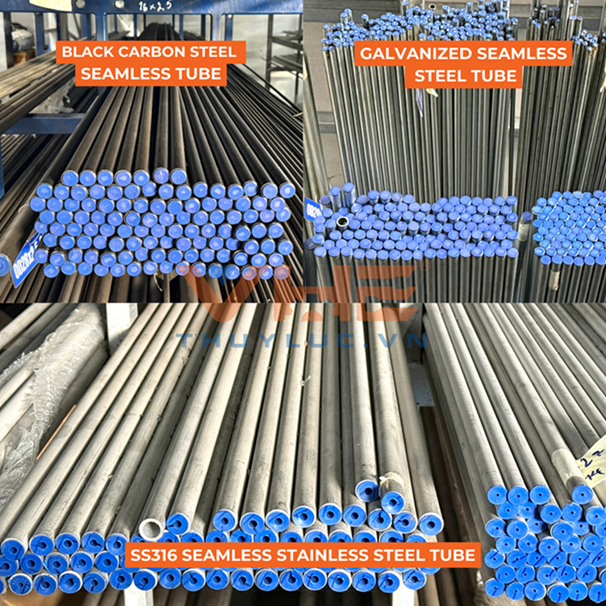

First, it is important to understand that all three of these options are Seamless Tubes. These are pipes manufactured without any welded seams. They are produced from solid round steel billets that are heated and extruded (pierced) through a die to form a hollow tube, completely eliminating any weak points like welds or joints along the body. Because of this structural integrity, these tubes can withstand immense pressure. However, each material is specifically engineered to excel in different environmental conditions:

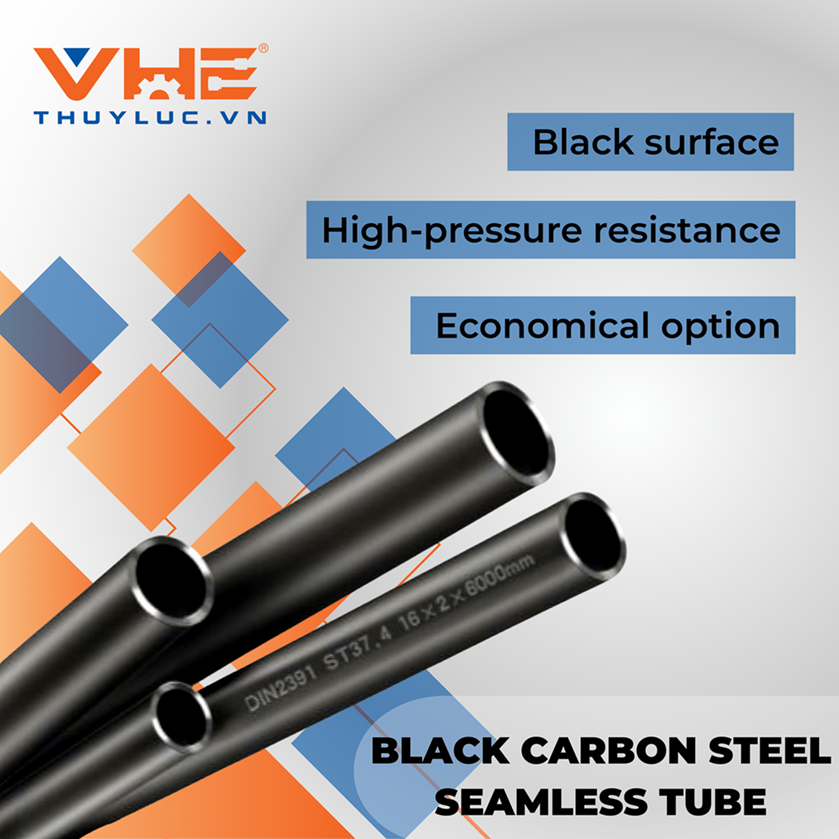

1. Black Carbon Steel Seamless Tube
This is the most popular choice for standard hydraulic systems, such as hydraulic presses and heavy construction machinery.
- Characteristics: Features the distinctive black surface of carbon steel and provides excellent high-pressure resistance.
- Pros: The most economical option among the three materials.
- Cons: Highly susceptible to oxidation (rusting) when exposed to humid environments. It typically requires a protective coating of paint or anti-rust preservation oil.
- Applications: Commonly used in systems conveying oil, gas, steam, and high-pressure water, -as well as in boilers and structural construction.

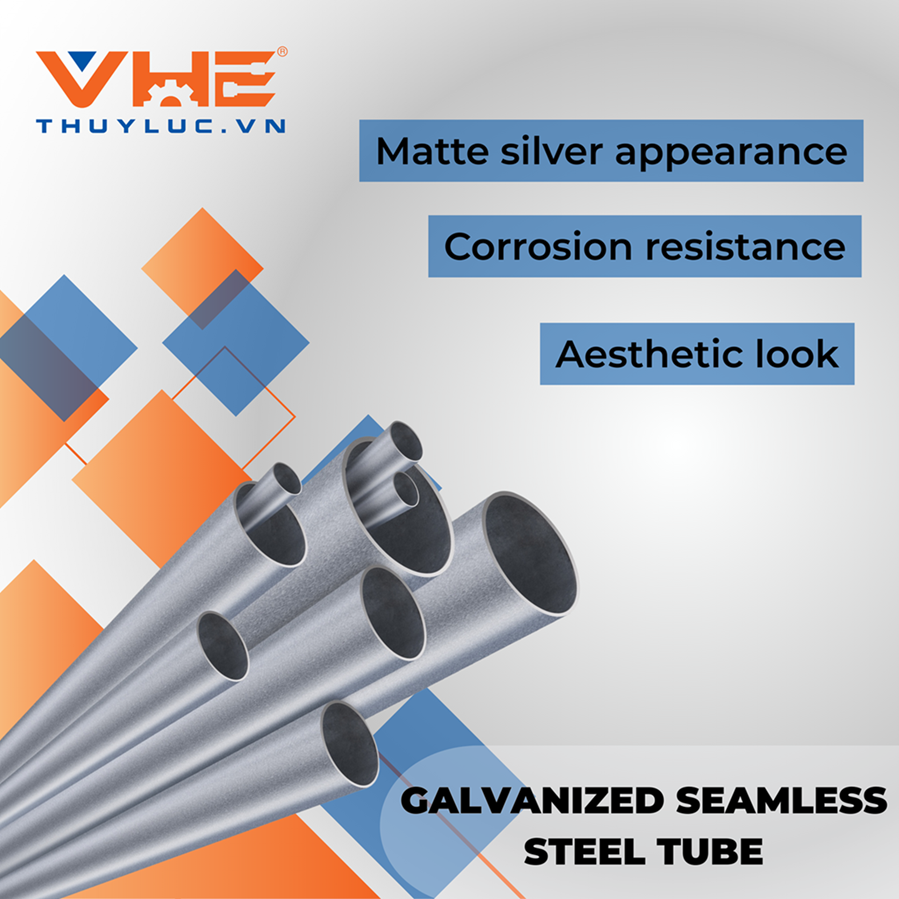

2. Galvanized Seamless Steel Tube
If your system operates outdoors but requires a moderate investment budget, this is the number one choice.
- Characteristics: Protected by a zinc coating on both the internal and external surfaces of the tube, giving it a matte silver appearance.
- Pros: Offers significantly better corrosion resistance than black carbon steel and provides a clean, aesthetic look.
- Cons: Potential issues include the flaking or peeling of the zinc coating and mechanical deformation under certain conditions.
- Applications: Exposed outdoor hydraulic systems and high-humidity environments. Widely utilized in the petrochemical, chemical, shipbuilding, and marine development industries.

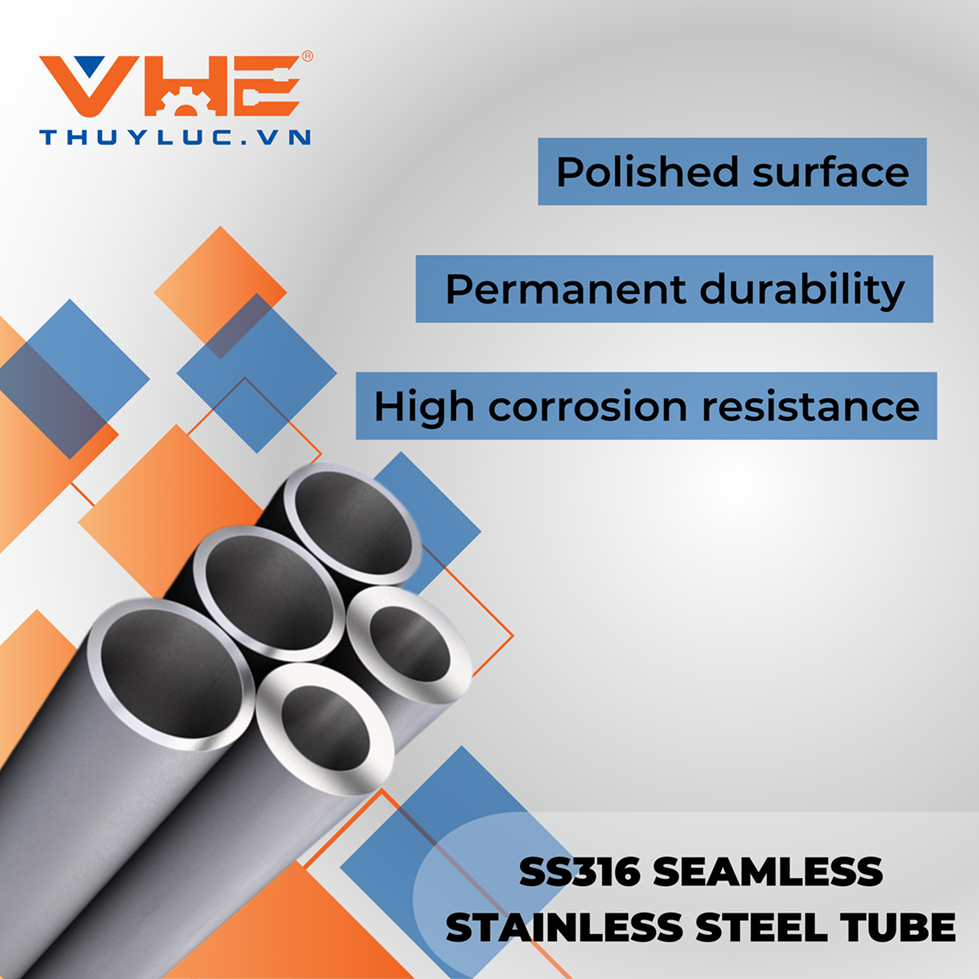

3. SS316 Seamless Stainless Steel Tube
When it comes to permanent durability and resistance to chemical corrosion, nothing can replace SS316.
- Characteristics: Features a bright, polished, premium surface and is non-magnetic.
- Pros: Exceptional resistance to sea salt (chlorides) and chemicals, coupled with excellent heat resistance.
- Cons: Very high upfront cost. It can also be susceptible to crevice corrosion when exposed to highly aggressive chemicals or if the surface is contaminated.
- Applications: The shipbuilding industry, petrochemical refining, chemical plants, food processing facilities, and medical equipment.
At Vina-Hydraulic Equipment Joint Stock Company (VHE), we understand that every project comes with its own unique technical requirements. Beyond merely supplying premium tubes that strictly adhere to DIN 2391C ST37.4 and ASTM A 213/269 TP316/L standards, VHE is committed to delivering maximum convenience and value to our clients:
Precision Cut-to-Length Service: You are not required to purchase a full 6-meter length. We offer custom cutting to your exact specifications, helping you minimize waste and optimize your project costs.
Extensive In-Stock Inventory: We maintain a massive ready-to-ship inventory, featuring a comprehensive range of Outside Diameters (OD)—from small to large—across all three material categories.
Full Certification & Documentation: We guarantee that all products meet strict technical standards, backed by clear origins and complete commercial invoices, ensuring absolute safety and reliability for your hydraulic systems.
- Seamless steel pipe, OD06x1.0x6000-CS
- Seamless steel pipe, OD08x1.0x6000-CS
- Seamless steel pipe, OD08x2.0x6000-CS
- Seamless steel pipe, OD10x1.0x6000-CS
- Galvanized seamless steel pipe, CSG, OD18x1.5x6000-CSG
- Galvanized seamless steel pipe, CSG, OD22x2.0x6000-CSG
- Galvanized seamless steel pipe, CSG, OD28x2.5x6000-CSG
- Seamless pipe SS316, OD06x1.0x6000-SS
- Seamless pipe SS316, OD08x1.0x6000-SS
- Seamless pipe SS316, OD10x1.5x6000-SS
- Seamless pipe SS316, OD12x1.5x6000-SS
Require technical consultation on specifications or looking for the best quote today?
Please do not hesitate to contact us. Due to the continuous market fluctuations in global steel prices, the VHE technical team is always on standby to provide you with a prompt and competitive quotation based on your specific required quantities and dimensions.
