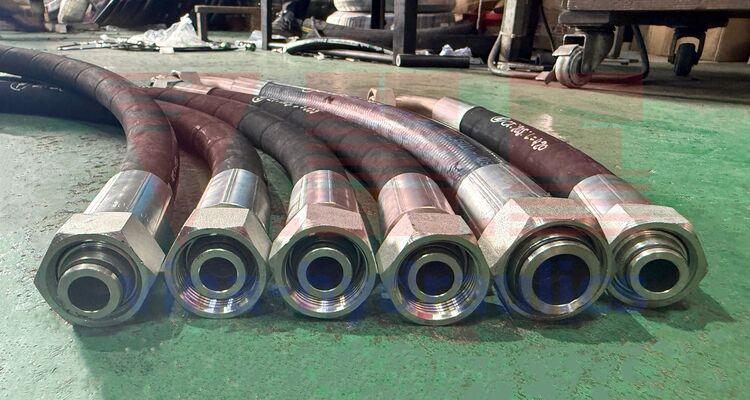

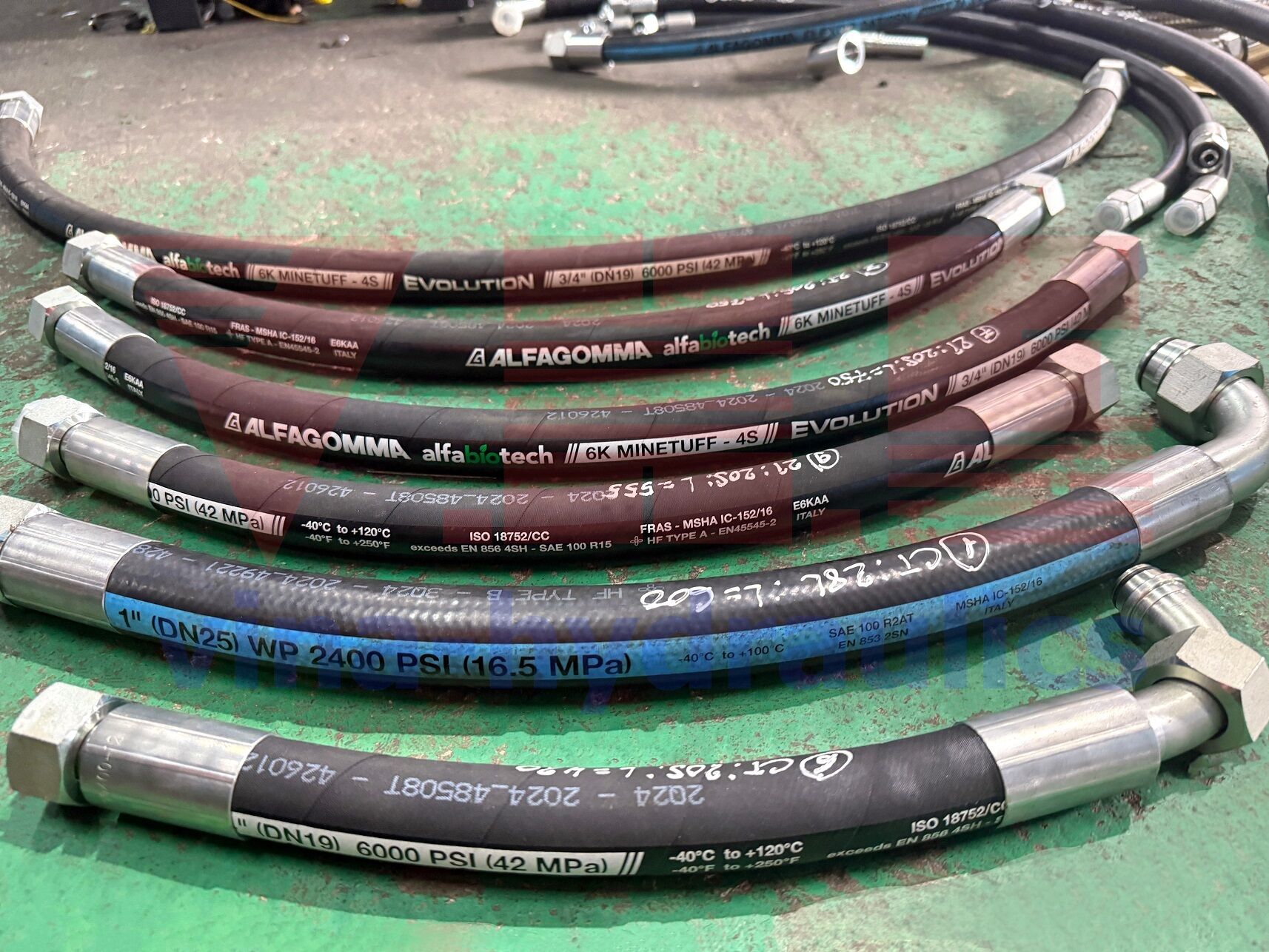

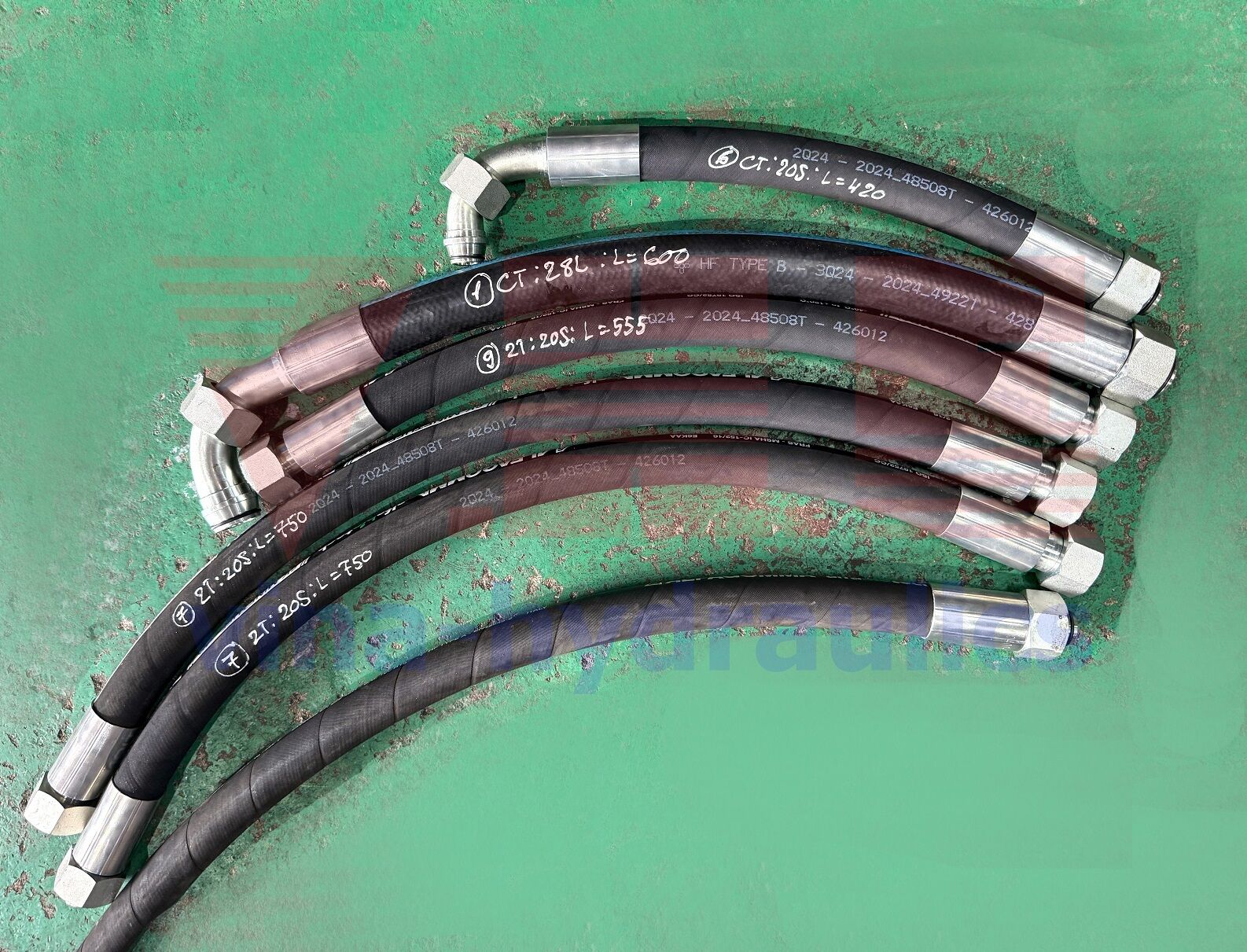

VHE recently completed an order for hydraulic hose fabrication, including Flexor Minetuff 1'' hydraulic hoses and 6K Alfabiotech 3/4'' soft hoses crimped with DIN crimping fittings. The detailed technical specifications for this order are:
- 6K 3/4'' Alfabiotech hydraulic hose (4SH-12) with a 3/4'' 4-layer ferrule and a 3/4'' 20S DIN end, 90-degree bend.
- R2AT 1'' hydraulic hose, Flexor 2SN-MT (2SN-16-MT) with a 1'' 1/2-layer ferrule and a 1'' 28L DIN end, 90-degree bend.
About Alfagomma Flexor Minetuff Hydraulic Hoses
- Standards: ISO 1436-1 – SAE 100 R2AT – EN 853 2SN
- Material: Oil-resistant synthetic rubber (monolithic construction).
- Cover Type: Smooth cover for 1" and smaller; fabric-wrapped cover for 1" and larger.
- Reinforcement: Two braids of high-tensile steel wire for robustness and durability.
- Durability: Resistant to abrasion, oxidation, and harsh weather conditions.
- Temperature Range: -40°C -> 100°C (-40°F -> 212°F)
About Alfagomma Alfabiotech Evolution Hoses
The Alfabiotech Evolution series by Alfagomma is designed for conveying hydraulic fluids and oils, including biodegradable and petroleum-based types. These hoses are specially engineered with a very small bending radius, offering excellent resistance to abrasion, oxidation, and various temperature environments.
Alfabiotech Evolution boasts significant improvements and advantages:
- Compact design
- Easy installation
- Bending radius that exceeds ISO 18752 and SAE100R requirements
- MSHA approved: Features flame-resistant and self-extinguishing properties
- High abrasion resistance
Currently, VHE is an authorized dealer for Alfagomma in Vietnam. We possess all necessary dealership confirmation documents and provide CO and CQ certificates from the manufacturer. By importing Alfagomma genuine hoses in large quantities, VHE ensures highly competitive pricing in the current market.
Contact VHE today to receive a special quotation for Alfagomma Alfabiotech Evolution and Flexor Minetuff hydraulic hoses!
