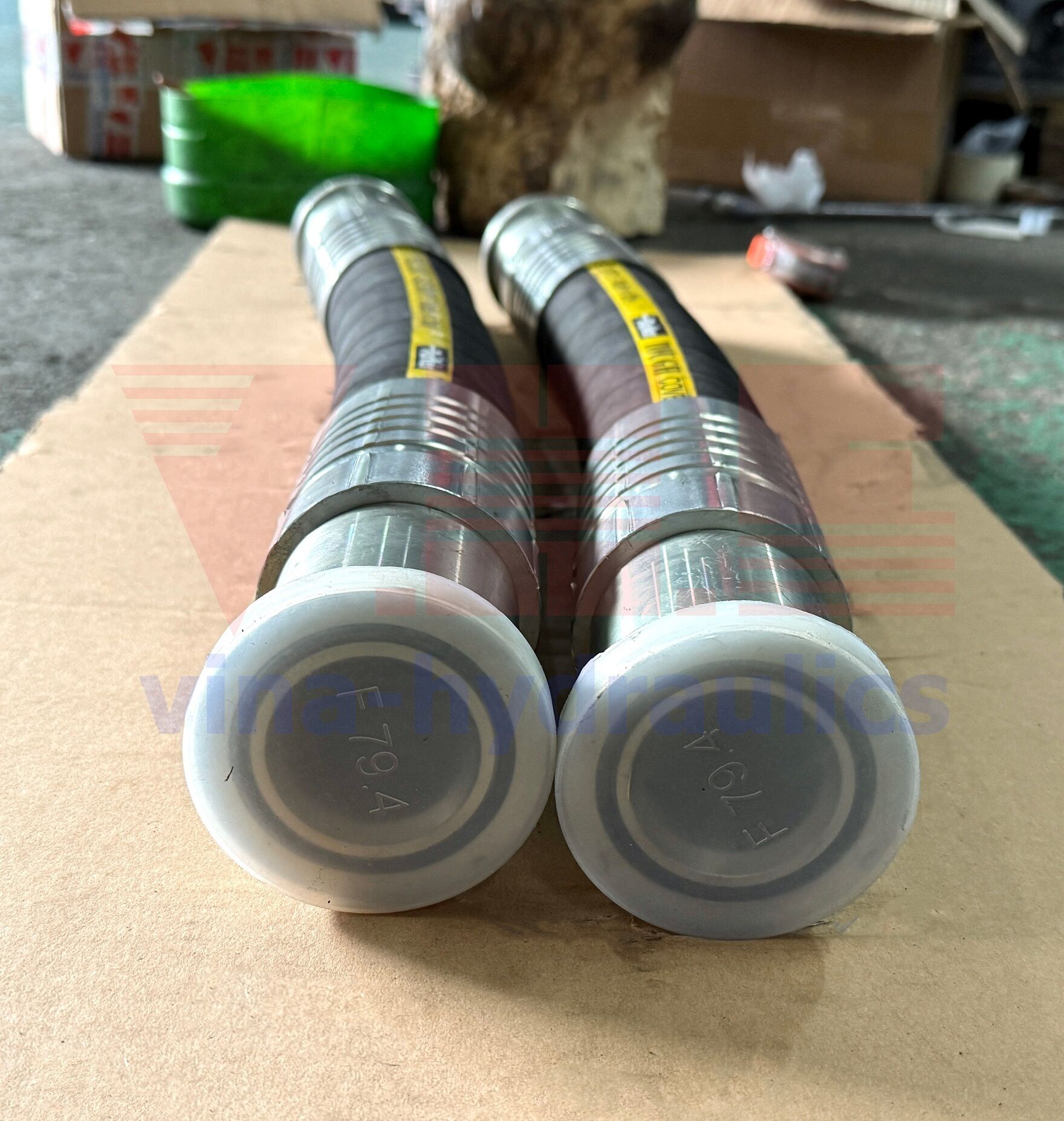

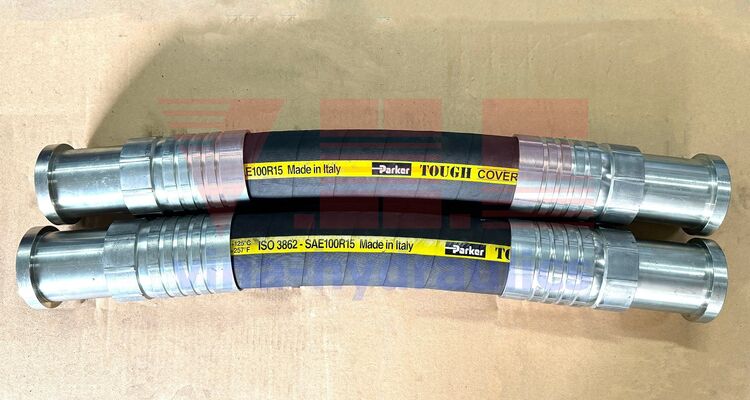

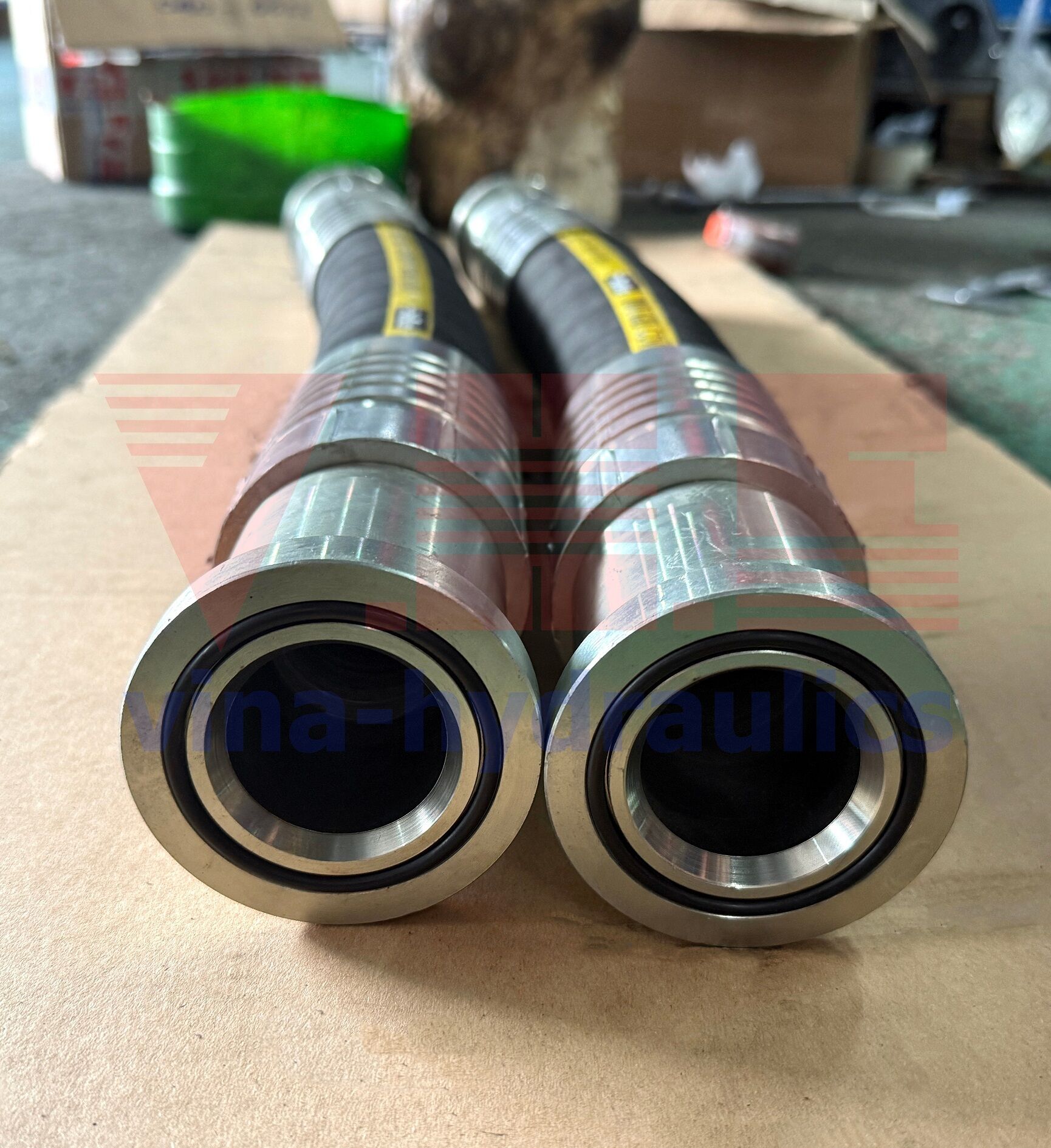

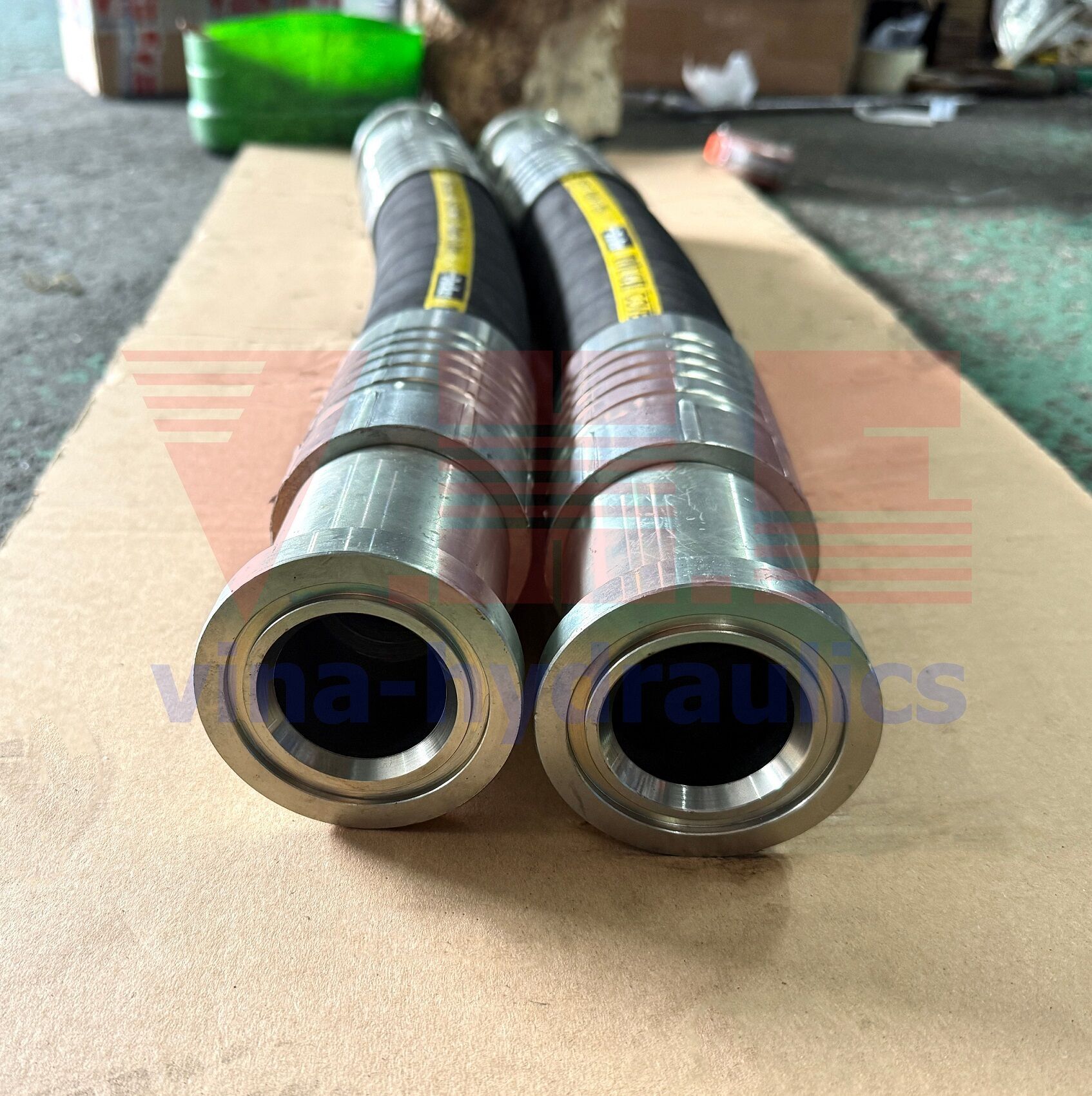

Recently, VHE fulfilled an order to fabricate two Parker R15 R42TC hydraulic hose assemblies, 2 inches in diameter, crimped with interlock fittings on both ends.
Order details:
- Hydraulic Hose: R15 2'' Parker R42TC, rated for 420 bar pressure.
- Fittings: Crimped with a straight interlock flange (code 62, 79.4 mm) on both ends.
- Length: L= 630mm.
- Accessories: Includes an O-ring and end cap.
About the Parker R42TC Hydraulic Hose
The Parker R42TC is a super high-pressure hose designed to meet SAE 100R15 standards. It features a reinforcement layer of either 4 or 6 spiral-wound steel wires and a superior abrasion-resistant outer cover. This product is ideal for heavy-duty applications in demanding environments such as mining, construction, and other outdoor equipment, with a maximum working pressure of 42 MPa (6000 psi / 420 bar).
Key Features of the Parker R42TC Hose
- Construction:
+ Inner Tube: Synthetic rubber.
+ Reinforcement: 4 or 6 layers of high-tensile spiral-wound steel wire.
+ Outer Cover (Tough Cover - TC): A synthetic rubber cover engineered for excellent resistance to abrasion, ozone, and weather. It is MSHA certified.
- Standards: Meets or exceeds SAE J517 R15 and ISO 3862 standards.
- Applications: Suitable for ultra-high-pressure hydraulic systems and heavy machinery in harsh outdoor environments, including mining, heavy industry, and construction.
- Working Pressure: Maximum working pressure of up to 42 MPa (6000 psi / 420 bar).
- Abrasion Resistance: The Tough Cover (TC) offers many times the abrasion resistance of standard hoses.
- Other Features:
+ Small minimum bend radius.
+ Lightweight.
+ Widely used in hydraulic systems for construction, waste and recycling, railway equipment, steel mills, and foundries. Also commonly used on tractors, cranes, harvesters, and road oil sprayers.
In addition to the R42TC, VHE also distributes other hose lines, including 301SN, 421SN, 471TC, BPK, JKPM, R35TC, 701MSHA, and 731MSHA.
If you need custom hydraulic hose fabrication or other sizes, you can contact VHE for a consultation.
